FXAA

发表于 更新于 分类于
FXAA 是一种后处理抗锯齿技术,依靠边缘检测来消除锯齿

FXAA3.11有两个版本，其中 Quality 版本是较注重抗锯齿质量的版本，Console 版本是较注重抗锯齿速度的版本.
这儿大致说一下Quality版本.

Luma

首先，我们先来计算当前处理的像素点和周围像素点的亮度对比值，FXAA 通过确定水平和垂直方向上像素点的亮度差，来计算对比值。当对比度值较大时，我们认为需要进行抗锯齿处理。

求亮度可以使用常用的求亮度公式 L = 0.213 * R + 0.715 * G + 0.072 * B，也可以直接使用G分量的颜色值作为亮度值，因为绿色对整体亮度的贡献是最大的。

检测 AA 边缘

首先，我们先来计算当前处理的像素点和周围像素点的亮度对比值，FXAA 通过确定水平和垂直方向上像素点的亮度差，来计算对比值。当对比度值较大时，我们认为需要进行抗锯齿处理

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
FxaaFloat lumaS = FxaaLuma(FxaaTexOff(tex, posM, FxaaInt2(0, 1), fxaaQualityRcpFrame.xy));
FxaaFloat lumaE = FxaaLuma(FxaaTexOff(tex, posM, FxaaInt2(1, 0), fxaaQualityRcpFrame.xy));
FxaaFloat lumaN = FxaaLuma(FxaaTexOff(tex, posM, FxaaInt2(0, -1), fxaaQualityRcpFrame.xy));
FxaaFloat lumaW = FxaaLuma(FxaaTexOff(tex, posM, FxaaInt2(-1, 0), fxaaQualityRcpFrame.xy));

  FxaaFloat maxSM = max(lumaS, lumaM);
FxaaFloat minSM = min(lumaS, lumaM);
FxaaFloat maxESM = max(lumaE, maxSM);
FxaaFloat minESM = min(lumaE, minSM);
FxaaFloat maxWN = max(lumaN, lumaW);
FxaaFloat minWN = min(lumaN, lumaW);
FxaaFloat rangeMax = max(maxWN, maxESM);
FxaaFloat rangeMin = min(minWN, minESM);
FxaaFloat rangeMaxScaled = rangeMax * fxaaQualityEdgeThreshold;
FxaaFloat range = rangeMax - rangeMin;
FxaaFloat rangeMaxClamped = max(fxaaQualityEdgeThresholdMin, rangeMaxScaled);
FxaaBool earlyExit = range < rangeMaxClamped;

基于亮度的混合

通过计算目标像素和周围像素点的平均亮度的差值，我们来确定将来进行颜色混合时的权重。因为对角像素距离中心像素比较远，所以计算平均亮度值时的权重会略微低一些。

混合因子可见:soble算子 https://blog.sciencenet.cn/blog-425437-1139187.html

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
FxaaFloat lumaNW = FxaaLuma(FxaaTexOff(tex, posM, FxaaInt2(-1, -1), fxaaQualityRcpFrame.xy));
FxaaFloat lumaSE = FxaaLuma(FxaaTexOff(tex, posM, FxaaInt2(1, 1), fxaaQualityRcpFrame.xy));
FxaaFloat lumaNE = FxaaLuma(FxaaTexOff(tex, posM, FxaaInt2(1, -1), fxaaQualityRcpFrame.xy));
FxaaFloat lumaSW = FxaaLuma(FxaaTexOff(tex, posM, FxaaInt2(-1, 1), fxaaQualityRcpFrame.xy));

FxaaFloat lumaNS = lumaN + lumaS;
FxaaFloat lumaWE = lumaW + lumaE;
FxaaFloat subpixNSWE = lumaNS + lumaWE;
FxaaFloat edgeHorz1 = (-2.0 * lumaM) + lumaNS;
FxaaFloat edgeVert1 = (-2.0 * lumaM) + lumaWE;

FxaaFloat lumaNESE = lumaNE + lumaSE;
FxaaFloat lumaNWNE = lumaNW + lumaNE;
FxaaFloat edgeHorz2 = (-2.0 * lumaE) + lumaNESE;
FxaaFloat edgeVert2 = (-2.0 * lumaN) + lumaNWNE;

FxaaFloat lumaNWSW = lumaNW + lumaSW;
FxaaFloat lumaSWSE = lumaSW + lumaSE;
FxaaFloat edgeHorz4 = (abs(edgeHorz1) * 2.0) + abs(edgeHorz2);
FxaaFloat edgeVert4 = (abs(edgeVert1) * 2.0) + abs(edgeVert2);
FxaaFloat edgeHorz3 = (-2.0 * lumaW) + lumaNWSW;
FxaaFloat edgeVert3 = (-2.0 * lumaS) + lumaSWSE;
FxaaFloat edgeHorz = abs(edgeHorz3) + edgeHorz4;
FxaaFloat edgeVert = abs(edgeVert3) + edgeVert4;

FxaaFloat subpixNWSWNESE = lumaNWSW + lumaNESE;
FxaaFloat lengthSign = fxaaQualityRcpFrame.x;
FxaaBool horzSpan = edgeHorz >= edgeVert;
FxaaFloat subpixA = subpixNSWE * 2.0 + subpixNWSWNESE;
//计算出亮度差
if(!horzSpan) lumaN = lumaW;
if(!horzSpan) lumaS = lumaE;`
if(horzSpan) lengthSign = fxaaQualityRcpFrame.y;
FxaaFloat subpixB = (subpixA * (1.0 / 12.0)) - lumaM;

计算方向

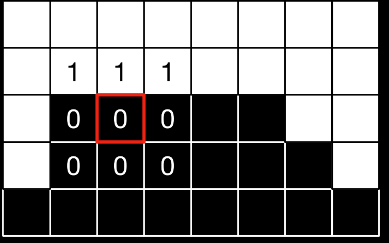

e.g.
以此举个例子说明每一步

horizontal = |-2x0+0+1| + 2x|-2x0+0+1| + |-2x0+1+0| = 4
vertical = |-2x0+0+0| + 2x|-2x1+1+1| + |-2x0+0+0| = 0
horizontal > vertical,所以是水平边缘.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
  //subpixC 亮度比值
FxaaFloat gradientN = lumaN - lumaM;
FxaaFloat gradientS = lumaS - lumaM;
FxaaFloat lumaNN = lumaN + lumaM;
FxaaFloat lumaSS = lumaS + lumaM;
FxaaBool pairN = abs(gradientN) >= abs(gradientS);
FxaaFloat gradient = max(abs(gradientN), abs(gradientS));
if(pairN) lengthSign = -lengthSign;
  FxaaFloat subpixRcpRange = 1.0 / range;
FxaaFloat subpixC = FxaaSat(abs(subpixB) * subpixRcpRange);

FxaaFloat2 posB;
posB.x = posM.x;
posB.y = posM.y;
FxaaFloat2 offNP;
offNP.x = (!horzSpan) ? 0.0 : fxaaQualityRcpFrame.x;
offNP.y = (horzSpan) ? 0.0 : fxaaQualityRcpFrame.y;
if(!horzSpan) posB.x += lengthSign * 0.5;
if(horzSpan) posB.y += lengthSign * 0.5;
//subpixE 计算平滑亮度差
FxaaFloat2 posN;
posN.x = posB.x - offNP.x * FXAA_QUALITY__P0;
posN.y = posB.y - offNP.y * FXAA_QUALITY__P0;
FxaaFloat2 posP;
posP.x = posB.x + offNP.x * FXAA_QUALITY__P0;
posP.y = posB.y + offNP.y * FXAA_QUALITY__P0;
FxaaFloat subpixD = ((-2.0) * subpixC) + 3.0;
FxaaFloat lumaEndN = FxaaLuma(FxaaTexTop(tex, posN));
FxaaFloat subpixE = subpixC * subpixC;
FxaaFloat lumaEndP = FxaaLuma(FxaaTexTop(tex, posP));

找到边界点

上述在我们的例子中,开始水平混合.
gradientN从w开始往左查找,s向右查找.
个人观点:大部分说0.25 x gradient的0.25是经验值.分析,s-n如果都看做中心点,s-n是4个半个像素.lumaEndN -= lumaNN * 0.5;这个差值看做2个end半像素-1个nn半像素,就是半个像素..所以0.25是线性相关的,并不是经验值.

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
if(!pairN) lumaNN = lumaSS;
  //梯度
FxaaFloat gradientScaled = gradient * 1.0 / 4.0;
FxaaFloat lumaMM = lumaM - lumaNN * 0.5;
FxaaFloat subpixF = subpixD * subpixE;
FxaaBool lumaMLTZero = lumaMM < 0.0;

lumaEndN -= lumaNN * 0.5;
lumaEndP -= lumaNN * 0.5;
FxaaBool doneN = abs(lumaEndN) >= gradientScaled;
FxaaBool doneP = abs(lumaEndP) >= gradientScaled;
if(!doneN) posN.x -= offNP.x * FXAA_QUALITY__P1;
if(!doneN) posN.y -= offNP.y * FXAA_QUALITY__P1;
FxaaBool doneNP = (!doneN) || (!doneP);
if(!doneP) posP.x += offNP.x * FXAA_QUALITY__P1;
if(!doneP) posP.y += offNP.y * FXAA_QUALITY__P1;

1
2
FxaaBool pairN = abs(gradientN) >= abs(gradientS)
if(pairN) lengthSign = -lengthSign;

后面的代码就是迭代的过程了,循环找到开始点和结束点.

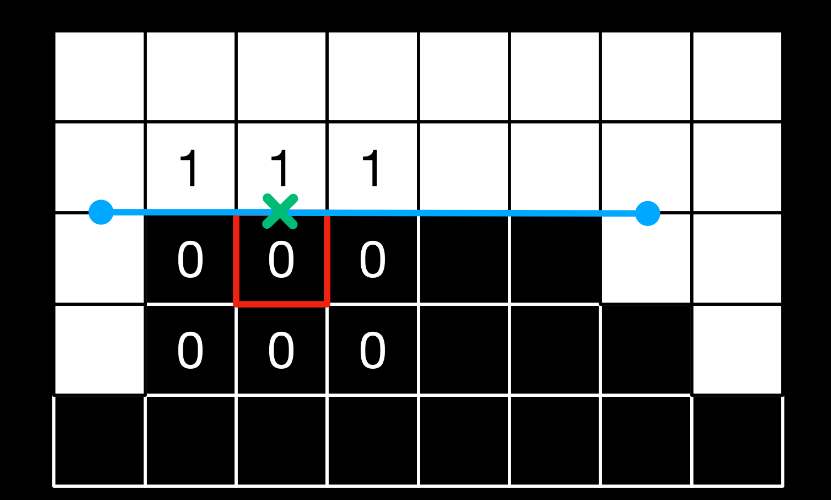

e.g.
最后我们找到了开始2个点,结束4个点

混合

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
FxaaFloat dstN = posM.x - posN.x;
FxaaFloat dstP = posP.x - posM.x;
if(!horzSpan) dstN = posM.y - posN.y;
if(!horzSpan) dstP = posP.y - posM.y;

FxaaBool goodSpanN = (lumaEndN < 0.0) != lumaMLTZero;
FxaaFloat spanLength = (dstP + dstN);
FxaaBool goodSpanP = (lumaEndP < 0.0) != lumaMLTZero;
FxaaFloat spanLengthRcp = 1.0 / spanLength;

FxaaBool directionN = dstN < dstP;
FxaaFloat dst = min(dstN, dstP);
FxaaBool goodSpan = directionN ? goodSpanN : goodSpanP;
FxaaFloat subpixG = subpixF * subpixF;
FxaaFloat pixelOffset = (dst * (-spanLengthRcp)) + 0.5;
FxaaFloat subpixH = subpixG * fxaaQualitySubpix;

FxaaFloat pixelOffsetGood = goodSpan ? pixelOffset : 0.0;
FxaaFloat pixelOffsetSubpix = max(pixelOffsetGood, subpixH);
if(!horzSpan) posM.x += pixelOffsetSubpix * lengthSign;
if(horzSpan) posM.y += pixelOffsetSubpix * lengthSign;
//返回像素
return FxaaFloat4(FxaaTexTop(tex, posM).xyz, lumaM);

e.g.对于示例像素

1
2
3
pixelOffset = FxaaFloat dst = min(dstN, dstP) = 2
spanLength = 6
FxaaFloat pixelOffset = (dst * (-spanLengthRcp)) + 0.5 = -2/6+0.5 = 0.1666

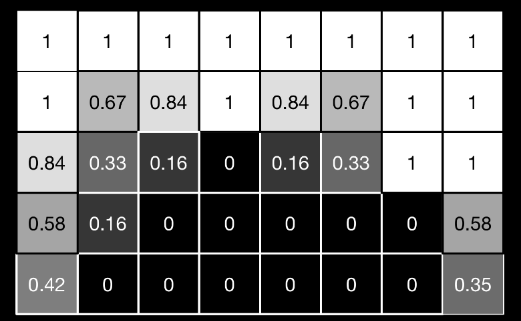

下面给出所有的混合系数

子像素抗锯齿

当栅格化后的物体小于一像素时，就产生了子像素失真。子像素失真最常见于非常细小的物体，例如场景中的塔尖、电话线或电线，甚至是距离屏幕足够远的一把剑。虽然这类失真也可以算是几何失真的一种，但在抗锯齿算法的设计中需要被特殊对待.

这些情况下，平均亮度是在3x3邻域上计算的。在从中减去中心亮度并除以第一步的亮度范围后，就得到了一个子像素偏移。与整个邻域的范围相比，平均值和中心值之间的对比度差越小，则区域越均匀(即没有单个像素点)，偏移量越小。然后对这个偏移量进行细化，我们保留上一步和这一步中较大的偏移量。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
	//NVIDIA给出的子像素偏移
	// Only used on FXAA Quality.
	// This used to be the FXAA_QUALITY__SUBPIX define.
	// It is here now to allow easier tuning.
	// Choose the amount of sub-pixel aliasing removal.
	// This can effect sharpness.
	//   1.00 - upper limit (softer)
	//   0.75 - default amount of filtering
	//   0.50 - lower limit (sharper, less sub-pixel aliasing removal)
	//   0.25 - almost off
	//   0.00 - completely off
	FxaaFloat fxaaQualitySubpix,

FxaaFloat subpixG = subpixF * subpixF;
FxaaFloat subpixH = subpixG * fxaaQualitySubpix;

补充个知识点,glsl中的平滑函数为它.

1
2
3
4
5
float smoothstep(float edge0, float edge1, float x)
{
float t = clamp((x - edge0) / (edge1 - edge0),0.0,1.0);
return t * t * (3.0 -2.0 * t);
}

e.g. 当SUBPIXEL_QUALITY = 0.75.上述中求子像素梯度为

1
2
3
4
5
6
7
8
9
10
11
subpixA = 2*(1+0+0+0)+1+1+0+0);
subpixB = (subpixA * (1.0 / 12.0)) - lumaM = 4/12 = 0.33;
FxaaFloat subpixC = FxaaSat(abs(subpixB) * subpixRcpRange);
FxaaFloat subpixD = ((-2.0) * subpixC) + 3.0;
FxaaFloat subpixE = subpixC * subpixC;
//平滑处理函数
FxaaFloat subpixF = subpixD * subpixE;

FxaaFloat subpixG = subpixF * subpixF;
FxaaFloat subpixH = subpixG * fxaaQualitySubpix =  0.75*((-2*0.333+3.0)*(0.3333)^2)^2 = 0.0503

所以此例子不进行子像素抗锯齿
